Point Drains

Features

Gruen floor drains have high end features for both functionality and technical design. You can find best solutions for your projects with various dimensions, different cover options, vertical and horizontal outlet siphon options.Beside it can be combined several Gruen accessories easily.

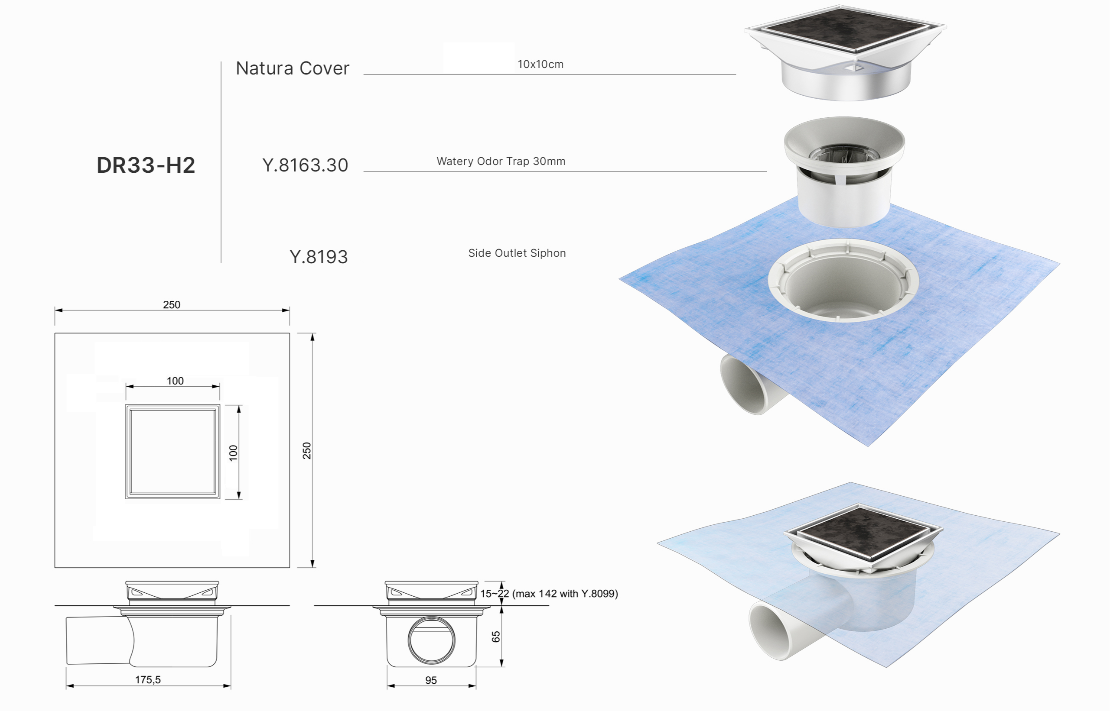

Reversible Frame: Natura

Natura cover with its metallic look can be flipped horizontally. You may apply your tiling inside while continuing to maintain integrity and elegancy in your bathroom

Cover Options

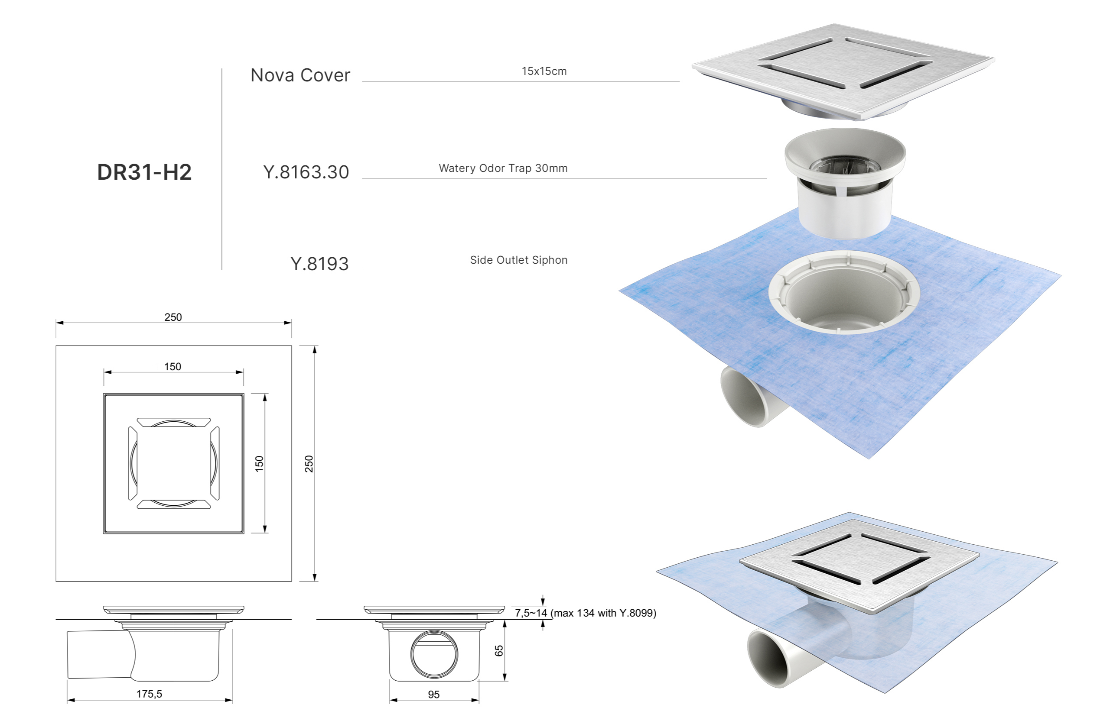

Nova Cover


Aqua


Natura (inox side)


Natura (tile side)

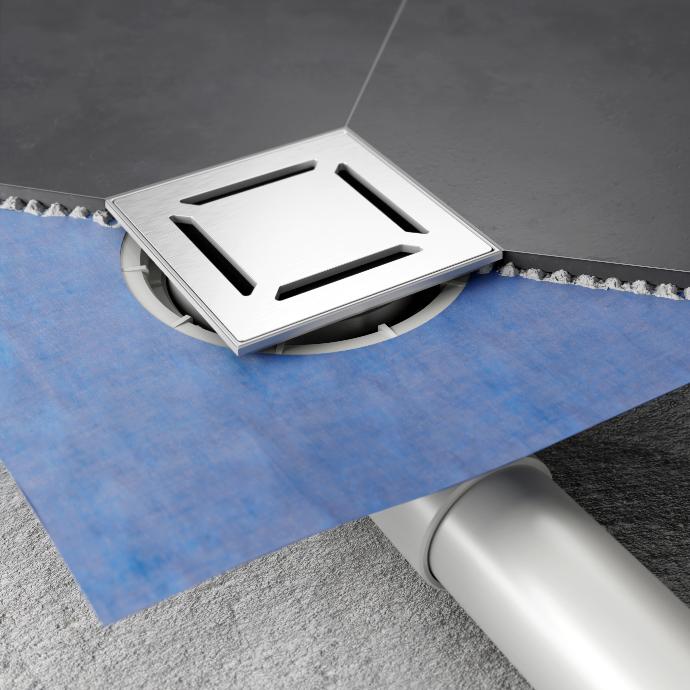

Ultra Slim Edged Frame

With cover surrounded by a thin and hidden frame will allow almost seamless finish between tiles and drain. Perfect finish and a better look.

Odor & Assistant Parts


Y.8163.30

Watery Odor Trap 30mm
(Default)

Y.8163.50

Watery Odor Trap 50mm
(Optional)


Y.8174

Waterless Odor Trap
(Optional)

Y.8099

Cuttable Height Adjustment Part (Optional)

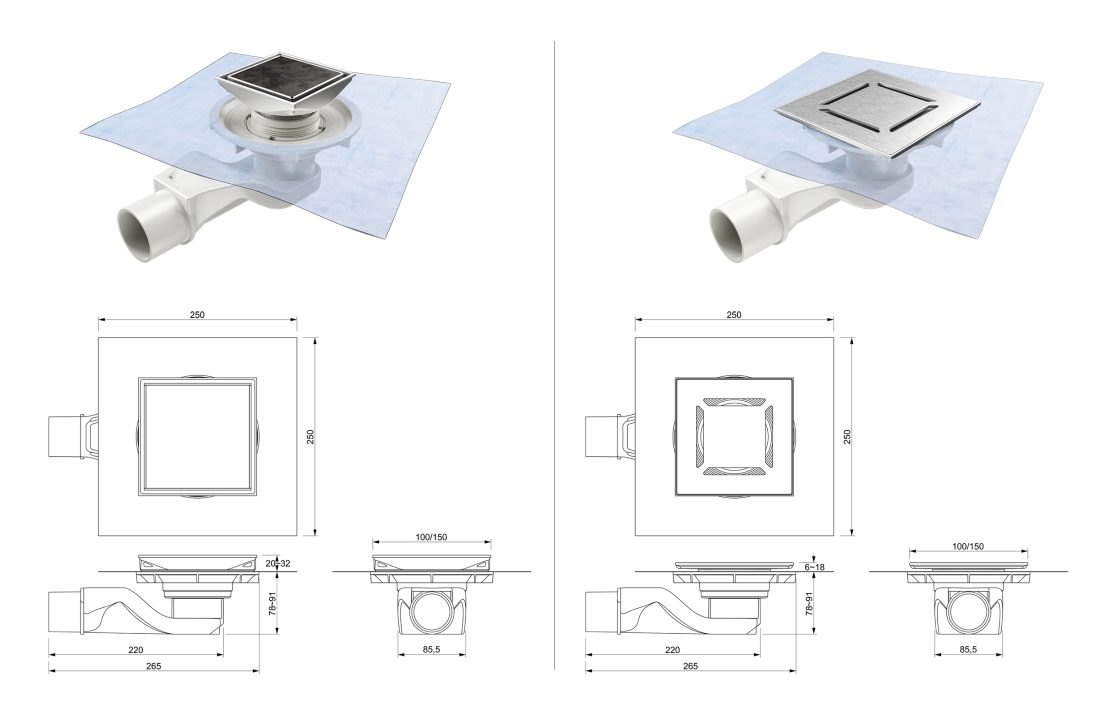

Siphon Options

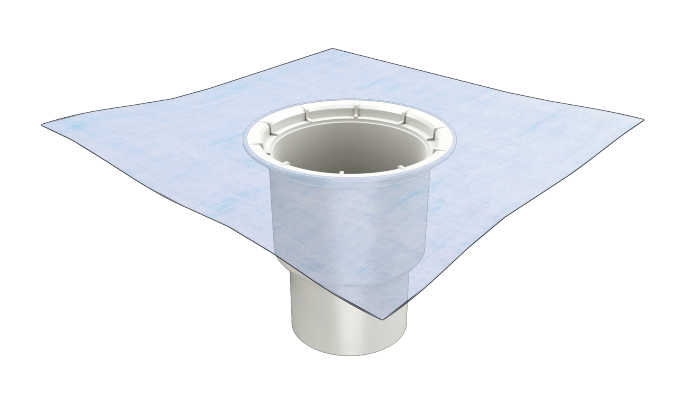

Y.8186

Side Outlet Trap

Y.8193

Vertical Outlet Trap


Y.8001

Side Outlet Odourless S type trap 48 l/min

Type-1a

Buy Now

Type-1b

Buy Now

Type-2

Buy Now
