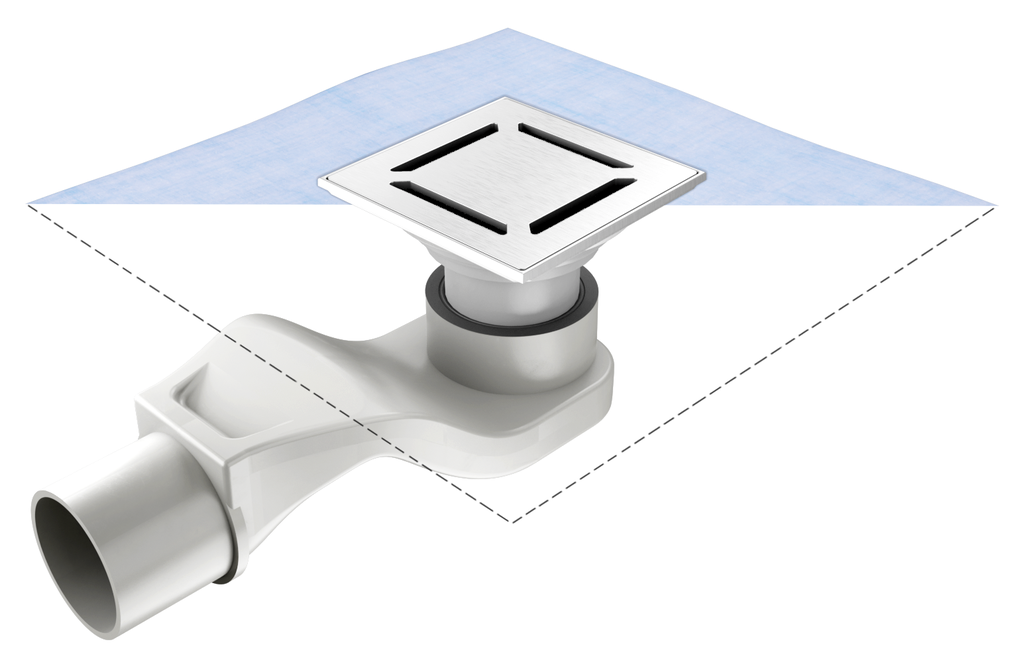

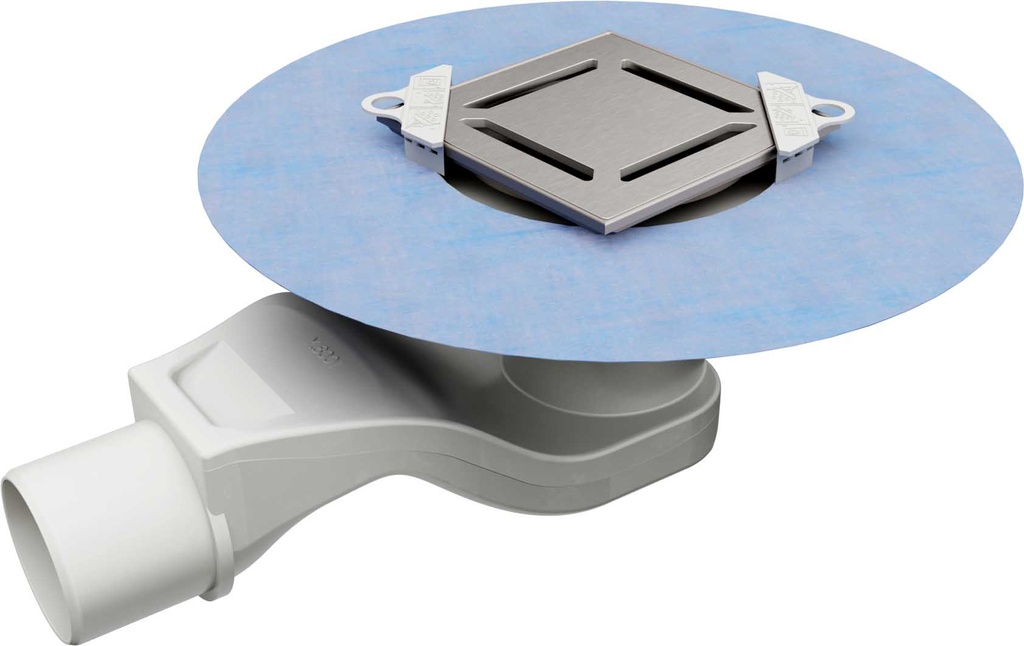

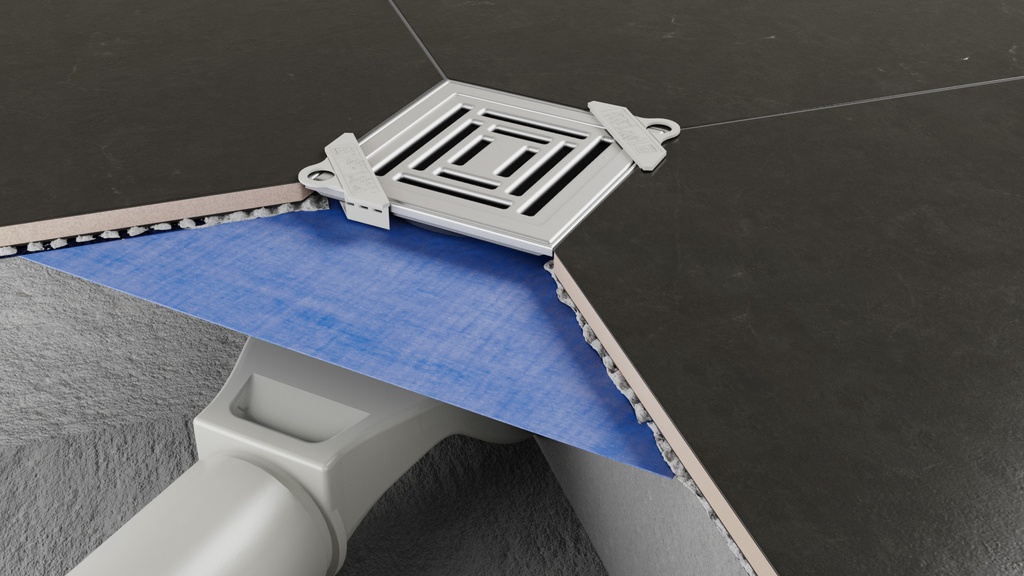

s-Typ Bodenablauf
| Auslauf Optionen: Höhe 60 - ø 50 |
| Farbe/Oberfläche: gebürstet |
| Material: Edelstahl 1.4301 (V2A) |
Area of Application
Area of Application
• Designed for walk-in and barrier-free showers in both residential and commercial projects.
• Suitable for domestic bathrooms, hotels, spas, wellness centres, saunas, sports facilities, and swimming pool shower areas.
• Applicable for floor finishes in ceramic, natural stone, or large-format tile.
• Compatible with common waterproofing membranes and suitable for full wet-room integration.
• Suitable for projects with a minimum installation depth of 60 mm
• Engineered to accommodate high water flow rates while incorporating an integrated odour trap.
• Recommended for renovation as well as new-build projects, thanks to its low installation depth.
• Allows installation along the wall.
• Delivers an efficient drainage system that combines hygiene with ease of cleaning for demanding wet-area applications.
• Made of 304 stainless steel, ensuring long-lasting durability in indoor wet areas. (For coastal or heavily chlorinated environments, 316 stainless steel is recommended.)
Specifications
• Drain profile and wall cover made of 1.4301 stainless steel (V2A
• Drain body with factory-applied waterproof sealing sleeve with certification (abP) for integration into the GRUEN smart sealing system (bonded waterproofing)
• 360° rotatable horizontal drain trap with a 25 mm water seal, inlet and outlet DN 50, drainage capacity up to 52 l/min
• Low installation height starting from 60 mm
• Quick and convenient adjustment of the drain body to the required installation height with the “easy cut” system
• Patented, adjustable eccentric flange for fine-tuning (10 mm vertical and 15 mm horizontal)
• Easy and quick adjustment of the drain body to tile thickness, compatible with tiles on the floor and wall ranging from 8-17 mm
• Leveling wedges for precise alignment of wall and floor surfaces
• Easy cleaning and perfect hygiene with a removable hair and dirt trap
Delivery Scope
• Complete set for direct installation
Installation Steps
• Make a wall opening 300 mm wide and at least 70 mm deep.
• Mark the installation height and position of the body.
• Cut the height adjustment piece and discard the excess.
• Mark and fix the position of the base plates.
• Place the built-in body into the wall opening.
• Position the siphon at the correct angle to fit the piping.
• Remove the protective cover and perform a water test to check for leaks.
• After confirming there is no leakage, reattach the protective cover to the body.
• Pour the screed and create a 1–2% slope.
• Use suitable adhesive for the waterproofing textile.
• Remove the protective cover and open the waterproofing textile.
• Adhere the waterproofing textile to the wall with a suitable tool.
• Apply complete waterproofing of the wet area, either with liquid coating or textile membrane.
• If cutting the body is necessary, pull the sealing gaskets toward the center and measure the cutting length.
• After cutting, return the gasket to its initial position (don’t forget to subtract the gasket distance from the rear hanger allowance).
• Apply the tile adhesive.
• Place and adjust the leveling wedges.
• Start laying the tiles carefully, considering the leveling wedges.
• Install the hair trap and hang the cover into position.
Do not rip of protective cover film until the whole application finished. Carry out the procecces through our company user guide. The product should be checked if there any damage before the installation. No responsibility accepted after the montage.
Do not contact bleach or liquids, acid, hydrochloric acid and chemical to clean ceramics that contain chlorine to the tiles long time because they cause blot. In case of any contact, with these materials wash the surfaces with plenty of water.
If any problems appear after the installation process, responsibility of our company is only assure its stainless steel is 304 quality. Installation areas where needs chemical resistance such as sea, pool areas, we suggest that 316 quality stainless steel. Stainless steel drains are made of 304 stainless steel. This material is non-porous, hygienic, rust-free and extremely durable.
We recommend a mind soap and a soft cloth for cleaning stainless and ofter surfaces. DO NOT use any abrasive cleaners, scrub pads or allow household cleaning agents, such as bleach, to sit on the drain cover for a long period of time.
Stainless steel does not rust. External factors, such as contamination from other highly ferrous metals, built up road salt, sea salt, or chlorine may have caused ”surface” rust. Follow proper maintenance procedures to prevent excessive surface rust. In areas of frequent exposure to salt, chlorine, and other chemical compounds, maintenance of the stainless surface should be performed at least 2-3 times per year.
